The University of Iowa's DEC PDP-8

Restoration Log

Part of the UI-8 pages
by Douglas W. Jones
THE UNIVERSITY OF IOWA Department of Computer Science

Contents


Introduction

This is a chronological log of the progress restoring the University of Iowa's PDP-8 computer. Entries are added at the end as work progresses. Click on any thumbnail image to see full-sized image.


Jul 1, 2025, Reverse Engineer Tally reader controller

  thumbnail photo     thumbnail photo
Backplane rows B and D
  thumbnail wiring diagram
Backplane wiring, as found
Bug 34: Continuing the work from Jun 24, 2024, we completed (over several days) the job of tracing all the wires in the Type 750 High-Speed Reader controller. We used a modified version of the backplane reverse-engineering form described on May 12, 2024 to record the wiring. This controller is packaged as part of a perhipheral interface bundle. A cursory inspection shows that the Module Utilization List D-34D-0-3 Rev J is related to our machine but the Psychology department made major changes.

Several details are omitted here, notably, there were 7 wires from the data inputs to the R203 flipflops in backplane slots B29 through B31 to an unpopulated backplane slot, D29. These were all wires added by the Psychology department, and on careful tracing their function, they all carried raw data from the tape reader. Our best hypothesis is that these wires part of an unfinished project.

  thumbnail schematic diagram
Type 750 controller, as found
The schematic diagram on the left was derived from the above wiring diagram with significant help from DEC's drawing BS D-750C-0-2 revision J, from 1968. That drawing describes an interface for a different paper-tape reader, but the wiring we have closely follows the basic organization of the top half of that drawing.

The thing that was most apparent in reverse engineering this interface is that it contains a number of features typical of shotgun debugging. The control system is close to twice as complex as required for the Tally reader, and some of the changes make this interface unnecessarily incompatible with the documentation for the interface in the PDP-8 Users Handbook (Digital Equipment Corporation, 1966).

  thumbnail photo     thumbnail photo
Rows B and D cleaned up
While working on this reverse engineering task, we found that backplane slot D29 was not the only one that was wired for an unfinished or abandoned project. It appears that the Psychology department used a number of slots in row D of this backplane segment for projects that were either unfinished or abandoned. We removed the wires from a number of slots in this row that were wired but had nothing plugged into them.

DEC's backplane wire-wrap pins in the pre-TTL era were designed for 22 or 24 AWG wire using Kynar (polyvinylidene fluoride) insulation. Some of the wire we removed had plain vinyl insulation, which is too soft for use among the sharp corners of wire-wrap pins, and some was 28 or 30 AWG (we did not measure it, but it was definitely too fine.) The blue wires visible in the photo of row D above are examples of this problem that remain in place, for now.


Jul 3, 2025, Compare good and bad G007 boards

  thumbnail photo     thumbnail photo
The improved test rig
Bug 66: The test rig we used on June 10 to test the G007 sense amplifier had a big defect. The transformer used to couple the output of our signal generator to the sense amplifier input produced the wrong waveform. A transformer is needed so that the inputs to the differential amplifier in the of the G007 are balanced, but we also want spikes comparble to the output of a real core stack, not a nice sine wave or square wave. We got this effect by using a very small (1/4 inch outside diameter) saturating core instead of the big core we used on June 10.

We broke the first small core we tried to use, ferrite is quite brittle. To protect our second attempt, we mounted the core on a small circuit board to isolate stresses on the windings from stresses imposed by test leads and handling. Our core had with 3 identical 3-turn windings made of 30-gauge wire-wrap wire. One wining connected to the signal generator, one to the input of the G007 board, and the final winding was used as a scope input to monitor the input to the G007 without perturbing it. Driving the core with a square wave produced nice spikes for testing the sense amplifier.

  thumbnail scope display
Pins E & F of problem board.
  thumbnail scope display
Pins E & F of good board.
The waveforms shown here all show the input to the G007 sense amplifier in blue, with the scale in millivolts, and the output in red, with the scale in volts. The traces shown to the right are for the two collectors of Q5, the second-stage differential amplifier in the G007. These are wired to backplane pins E and F. It is worth comparing these with the waveforms we measured on June 10.

With our test rig producing clean 20mV spikes as input, the collectors of Q5 produce complementary and somewhat stretched spikes with an amplitude close to 0.25V. At first glance, it is very difficult to see any difference between the good board and the problem board. Note that the complementary outputs were recorded separately and then combined here. Small horizontal differences between the two red traces are the result of jitter in the signal generator output and not evidence of amplifier problems.

A closer look shows that the outputs of the good board are just shy of 0.25V, while th outputs of the problem board are closer to 0.24V. A second detail we noticed only on close inspetion was that the differential amplifiers are not perfectly balanced on both boards. We did our best to balance all of the amplifiers by adjusting the trimmer potentiometer R4 to minimize the DC voltage between pins E and F, as measured with an analog volt meter. The slight imbalance remaining shows up as a slightly different peak amplitudes for the positive and negative spikes.

  thumbnail scope display
Pin J of problem board.
  thumbnail scope display
Pin J of good board.
The next thing we looked at was the output of the slicer on Pin J. The slicer circuit looks at the greater of the two differential amplifier outputs (pins E and F), comparing this with the slice voltage (pin H). The slice voltage is one of the outputs of the G008 Master Slice Control board (the schematic is immediately below that for the G007). We left this as it had been adjusted during our memory debugging.

The scope traces to the right show how the output of the slicer (shown in red) depends on the amplitude of the input pulses (shown in blue). We ramped the input pulse amplitude up from 30mV to 50mV. Note how, on the good sense amplifier, output pulses start to appear as the input amplitude rises from 30mV to 34mV, while on the problem board, output pulses only appear when the input amplitude rises from 38mV to 42mV. We used AC coupling for these measurements.

According to the writeup on the sense amplifiers on page 4-7 of the PDP-8 Maintenance Manual (Digital Equipment Corporation, 1966), the nominal amplitude of the input pulses to the sense amplifiers is 50mV.

Before we really thought this through, we replaced Q9 on the problem board. While it is possible that insufficient gain in this transistor would lead to problems here, it seems far more likely that what we are seeing is either insufficient select current — leading to a low amplitude in the input to the sense amplifier, or a slice voltage that is too high — leading to an excessive threshold. The apparent big difference between the good sense amplifier and the problem one can be explained by what we thought was an insignificant difference between the two amplifier gains.


Jul 8, 2025, Balance and compare all G007's

Bug 66: Having concluded, on July 3, that the most likely problem with our "bad" G007 sense amplifier board is simply that it has a lower gain than our "good" board, we set out to compare all 12 G007 boards. To help keep track of which board is which, we scratched an identifying letter on each board, from A to L, starting with the one we had considered bad. The following table relates board labels and bit numbers to backplane positions, as seen from the handle end of the board:

ROW
A
302928272625
108 6 4 2 0
B C D A E F
ROW
B
302928272625
119 7 5 3 1
G H I J K L

Note that, on the PDP-8, bit 0 is the most significant bit and bit 11 is the least significant bit. The bit numbers were taken from DEC drawing BS-D-BM-0-15 Sense Amps, Inhibit Drivers and Memory Control (page 10-51 of the 1966 Maintenance Manual).

With board A (the problem board) on the same test rig we used on July 3, we adjusted the slice voltage so that board A began to respond when inputs from the sense line had an amplitude of 34mV. In our July 3 tests, the good board (now labeled board J) had begun to respond at this voltage. (The slice voltage controls the threshold against which the differential amplifier output is compared, it is adjusted by changing the setting of the trimmer potentiometer R3 on the G008 Master Slice Control board; the schematic is immediately below that for the G007.)

We had adjusted the static balance of the differential amplifiers on all of the boards using the volt-meter techniqe recommended in the PDP-8 Memory Tuning Procedure (also available here) on page 9. We realized that our test rig offers a much more effective way to adjust the sense amplifier balance, so we adjusted the sense amplifier input to 50mV and then adjusted the sense amplifier balance so the output peaks on pin J were of equal height for both positive and negative input pulses. (Note that perfect balance was impossible because the balance adjustment, a 10Ω trimmer potentiometer (R4), changes the balance in discrete steps as the adjusting screw is turned.)

The following table shows the pulse height we measured on pin J for input 50mV input pulses on every board:

BoardPulse Height
A -2.7V
B -3.8V
C -3.6V
D -3.6V
E -4.0V
F -3.7V
G -3.7V
H -3.6V
I -3.9V
J -3.9V
K -3.7V
L -3.8V

The data here makes it very clear that our problem board has an unusually low gain. We may need to replace on or both of Q2 and Q5, although it is also possible that the gain, although sub-par, will be tolerable after completing the memory tuning procedure.


Jul 10, 2025, Start programming

Bug 64 and bug 66: On Jul 8 we speculated that our changed slice voltage might allow memory to work sufficiently reliably to allow us to try writing programs. So, we moved the G008 Master Slice Control (see schematic immediately below that of the G007) from our sense amplifier test rig back to slot B31 in the backplane and tried toggling things into memory.

Bug 43: It worked, so we tried writing a little program (all code here is shown in PAL-8 assember listing format):

00000 7001 L,      IAC             / increment AC
00001 5000         JMP     L       / iterate

Not a very exciting program, using just the IAC and JMP instructions, but it ran, with all the front panel lights for the accumulator AC blinking too fast to see, except the link bit L, a condition code bit that toggles with each carry out of AC. You could just see that L was flickering. We wanted to see what was happening, so we slowed the program down:

00000 7001 L,      IAC             / increment AC
00001 7000         NOP             / no opertion
00002 7000         NOP             / no opertion
00003 7000         NOP             / no opertion
00004 7000         NOP             / no opertion
00005 7000         NOP             / no opertion
00006 7000         NOP             / no opertion
00007 5000         JMP     L       / iterate

Adding NOP instructions slowed the program down enough that we could see that the top 3 bits of the accumulator were counting in binary.

With this success, we tried to make a program to run chase lights in the accumulator display:

00000 7320         CLA CLL CML     / initialize AC=0,L=0,L=~L
00001 7004 L,      RAL             / circular left shift [AC,L]
00007 5001         JMP     L       / iterate

Again this worked when we single stepped the code, but when we ran it, it was too fast, nothing was visible on the front panel lights. The CLA, CLL and CML opcodes all combine as a single microcoded instruction. To slow it down, we tried adding a delay loop using the ISZ instruction:

00000 7320         CLA CLL CML     / initialize AC=0,L=0,L=~L
00001 2005 L,      ISZ     X       / increment X and skip if zero
00002 5001         JMP     L       / iterate delay loop
00003 7004         RAL             / circular left shift [L,AC]
00004 5001         JMP     L       / iterate
00005 0000 X,      .-.             / delay loop counter

This did not work. It hung in the delay loop, and when we single stepped the code, we found that the carry was not propagating from bit 7 to bit 6 of the delay loop counter X. Looking at the CPU flow diagram, drawing BS-D-8P-0-7 (page 10-55 of the 1966 Maintenance Manual), we found that IAC and other addition functions on the accumulator use a different incrementor than is used by the ISZ instruction. The latter directly increments the memory data register, and according to drawing BS-D-8P-0-5 (page 10-35 of the Maintenance Manual), carry propagation for that increment is done using a pair of R181 boards. We did not bother with reverse engineering, but simply pulled the board from backplane slot PD19 (this handles the carry from bit 7 to bit 6) and checked all the diodes. Two were bad, so we replaced them and tried again.

With this fix, the program worked, but it was still too fast, so we rewrote it as:

00000 7320         CLA CLL CML     / AC=0,L=0,L=~L
00001 2011 L,      ISZ     X       / increment X and skip if zero
00002 5001         JMP     L       / iterate first delay loop
00003 2011 M,      ISZ     X       / increment X and skip if zero
00004 5003         JMP     M       / iterate second delay loop
00005 2011 N,      ISZ     X       / increment X and skip if zero
00006 5005         JMP     N       / iterate third delay loop
00007 7004         RAL             / circular left shift [L,AC]
00010 5001         JMP     L       / iterate
00011 0000 X,      .-.             / delay loop counter

This program worked nicely, repeatedly moving a single one bit left through the 13 bits [L,AC] slowly enough that you could follow it. We left it running for several minutes, which is to say, many million instruction cycles.

Our attempts to write code that did load and store, or rather TAD and DCA instructions failed. We need to do more CPU debugging. We left the chase light programm in memory before we turned the machine off because it is good for quick demos.


Jul 15, 2025, More programming

Bug 43: Continuing our work from July 10, we wrote more code. We were curious about taking input from the switch register using OSR. At the same time, we experimented with writing code in a higher page of memory, leaving our chase-light code from July 10 in page 0:

00200 7604 L,      CLA OSR         / AC=0,AC|=SR (in sum, AC=SR)
00201 5200         JMP     L       / iterate

This code worked. All it does is continuously display in the accumulator whatever value is on the front-panel switches. This allowed us to quickly verify that the data paths from all of the switches worked correctly. At the same time, it demonstrates that the "current page" addressing mode works, at least for JMP instructions.

We left that code in page 1 (which starts at 02008), and moved on to page 2 (starting at 04008) for a test of load and store, or rather TAD and DCA instructions. This program worked:

00400 7604 L,      CLA OSR         / AC=0,AC|=SR (in sum, AC=SR)
00401 3210 M,      DCA     X       / X=AC,AC=0
00402 7001         IAC             / AC+=1 (so AC=1)
00403 1210         TAD     X       / AC+=X (eventually increment X)
00404 2211 N,      ISZ     Y       / increment Y and skip if zero
00405 5204         JMP     N       / iterate delay loop
00406 5200         JMP     L       / iterate

00410 5200 X,      .-.             / value from SR or counter
00411 5200 Y,      .-.             / delay loop counter

As written above, the front panel lights for the accumulator always show the one more than the value in the switch register. Changing the final JMP L to JMP M (52018) changes the program's behavior to a simple binary counter.

From this experiment, we know that the DCA and IAC instructions are referencing memory. Furthermore, they appear to be referencing the current page, or at least, the chase-lights program we left in memory on July 10 still worked correctly after running this program.

We left the following program in memory:

00400 3210 L,      DCA     X       / X=AC,AC=0
00401 7604         CLA OSR         / AC=0,AC|=SR (in sum, AC=SR)
00402 1210         TAD     X       / AC+=X (eventually X=X+SR)
00403 2211 M,      ISZ     Y       / increment Y and skip if zero
00404 5203         JMP     M       / iterate delay loop
00405 5200         JMP     L       / iterate

00410 5200 X,      .-.             / counter visible on AC lights
00411 5200 Y,      .-.	           / delay loop counter

This program was somewhat fun becaue the value on the switch register is the amount by which the counter is incremented for each iteration of the outer loop, so by playing with the switch register while the program is running, you can change the rate at which the higher bits of the counter blink.

We tried to load code in page 3 (starting at 06008 and had difficulties. We tried to run larger programs and had difficulty. We tried running programs with subroutines and had difficulty. In some cases, these programs ran for a visible fraction of a second before hanging, and when they hung, the code had been changed. This suggests that there is something nondeterministic either in the call or return instructions or dependent on memory addresses outside the first few addresses in a page.

We also noticed that setting the program counter to an odd address from the switch register was difficult. It was easier to start with an even address and then increment the program counter with the examine key.


Jul 17, 2025, Test and replace some diodes

Bug 43:
  thumbnail photo
The chase light test
The chase-light program we wrote on July 10 was still in core memory, so we made a video recording of its output on the PDP-8 front-panel lights. Click on the thumbnail to the right to see an animated GIF made from that video.

Bug 74: In 2017, we scanned all of the R210 and R211 boards (25 double-height boards in all) in the CPU for bad diodes and replaced several. See bug 49 and bug 61. We decided that it was time to scan all of the other boards on the CPU side of the machine for bad diodes, and we found 3 on the boards in row PA of the backplane. We accidentally mis-diagnosed 3 more as bad and replaced them as well.

Our mis-diagnoses were diodes where the reverse resistance, when measured with an ohm-meter on the ×10 scale, was less than infinite. Sometimes, this is due to the circuit context providing an alternate current path. Short of reverse engineering boards, the easy way to discover if this is the case is to have a spare board for comparison. Fortunately, we have a stock of spares, all of which we should eventually test.


Jul 22, 2025, Test and replace more diodes

Bug 43: The chase-light program we wrote on July 10 still worked, but we got a bit ambitious and decided to rewrite it to see if the MQ (multiplier-quotient) register in the extended arithmetic element works. This uses just two new instructions, MQL and MQA

00200 7201         CLA IAC         / AC=0,AC+=1
00201 7421         MQL             / MQ=AC,AC=0
00202 2214 L,      ISZ     X       / increment X and skip if zero
00203 5202         JMP     L       / iterate first delay loop
00204 2214 M,      ISZ     X       / increment X and skip if zero
00205 5204         JMP     M       / iterate second delay loop
00206 2214 N,      ISZ     X       / increment X and skip if zero
00207 5206         JMP     N       / iterate third delay loop
00210 7501         MQA             / AC=MQ
00211 7004         RAL             / circular left shift [AC,L]
00212 7421         MQL             / MQ=AC,AC=0
00213 5202         JMP     L       / iterate outer loop

00214 5200 X,      .-.             / delay loop counter

  thumbnail photo of PDP-8 front panel blinkenlights
Testing the MQ register
This program worked. We made a video of the PDP-8 front panel lights while this program runs. You can see this, as an animated GIF, by clicking on the thumbnail to the right.

Bug 64: We had to re-enter the program several times, as some bits of some instructions were repeatedly corrupted by attempts to run it. Once it ran, however, it kept running. We strongly suspect that we need to continue our memory tune up to fix this.

Bug 74: We spent most of our time continuing the work we started on July 17, a systematic sweep through the diodes on the processor side of the machine. While we are at that, we also began systematically testing the diodes in our spare parts collection. We found several bad diodes in both row PB of the CPU and in our spare parts collection. Most of these were DEC's D664 diodes, but two were D662 diodes, equivalent to 1N645, for which we have ordered a stock.


Sep 18, 2025, Done with diodes, Teletype failure

Bug 74: We completed our sweep of diode testing through the processor side of the machine and finished up by testing the diodes in the Teletype interface and bus drivers on the memory side, and through all the diodes on the memory select matrix boards. We also went through our unopened spare board collection (but not the spares in unopened intact original plastic bags).

 slot type diodes replaced
PE33R6021 D664
PE22S1071 D664
PE20R1111 D6641 D662
ME22R2203 D664
MF14S202 1 D662

The table to the right shows some of the diodes we replaced. In general, the D664 diodes (used in logic and to clamp input and output voltage swings) were more likely to fail than the D662 diodes DEC liked to use for their forward voltage drop.

Our diode tests were in circuit, using an analog ohm meter on the x10 scale. Good diodes (D662 and D664) had forward resistances that measured as 180Ω – 200Ω and reverse resistances that were either infinite or over 2000Ω for some diodes where the circuit context provided an alternate reverse current path.

Most diodes failures involved decreased resistance, measuring under 150Ω forward and under 1000Ω reverse, but a few failures tended toward an open circuit. For example, one D662 both in circuit and after unsoldering, measured about 400&Omega forward and infinite in reverse.

Bug 75: During the diode scan, we found that the W050 30ma indicator driver in backplane slot MF23 is missing 3 of its 7 transistors. The etch on this board identifies it as a W050B. The schematic identifies these transistors as 4JX1C741 (equivalent to 2N527). These are germanium transistors, and searching on line for them shows that they are rare, apparently because designers of fuzz boxes for electric guitars like to use them. The front panel has 82 of these transistors used as drivers for the 82 lights there, and we suspect that these transistors were mined to replace some on the front panel.

Examining drawing BS-D-8M-0-11 Teletype Control (page 10-46 of the 1966 Maintenance Manual), we found that only 2 channels on this 7-channel board are in use, one to drive the serial data line, one to drive the reader-run line. We verified this by checking that the backplane wiring on slot MF23 does not connect to the other channels. While the interface should work with this board partly populated, we found a source for 4 used 2N527 transistors and ordered them.

Bug 76: Aside from working on memory, next step will be to try to debug the Teletype interface. When we plugged in the Teletype, it immediately began to chatter. Something is wrong. We opened up the cover to investigate, and found that the selector magnet was buzzing. This should not happen when the machine is idle, but our initial attempt to diagnose the problem produced no result. Reading drawing FS-9 115VAC power distribution in the Teletype model 33 drawing collection, we did learn that the local-off-line switch on the Teletype leaves the power on to the receiving circuitry and selector magnet in all positions.


Sep 22, 2025, Diagnose Teletype failure

  thumbnail scope display
Voltage across power transistor.
  thumbnail scope display
Voltage across local loop supply.
Bug 76: Our initial hypothesis was that one of the transistors in the Teletype receive circuitry might be bad. We borrowed a circuit board from anoter teletype and found no change in behavior. Drawing FS-1 Receive in the Teletype model 33 drawing collection shows the circuit board and allied circuitry in the receive data path. Transistor Q1 is on the circuit board, while Q2, a large power transistor used to drive the selector magnet, is mounted on a heat sink. The top scope trace shown here shows the collector-emitter voltage across Q2. It is very clear in this scope trace that Q2 is being switched on and off 60 times per second.

The transistors in the selector magnet driver are switched by the current in the data loop. When the Teletype is turned off or in local mode, this current is provided by the local loop supply. Drawing FS-1 Local Loop Current Supply in the Teletype model 33 drawing collection shows the local loop supply. This has a half-wave rectifier, so a failure in the filter capacitor, C1 in this drawing, would produce 60-cycle modulation of the local loop current. The second scope tract to the left shows the voltage across this filter capacitor.

Capacitor C1 has not shorted, but it's capacity is not high enough to sustain the loop current. It is a 250μFd 75V electrolytic capacitor, and our best hypothesis for the failure mode is that the electrolyte has been slowly drying out, reducing the capacity to a small fraction of what it should be. We ordered a replacement capacitor.

All of the scope traces shown here were taken in differential mode because both the local loop supply and the selector magnet driver supply float relative to ground.


Sep 29, 2025, Fix Teletype, test, more diodes.

Bug 76: We got a new 250μFd 75V electrolytic capacitor and put it into the Teletype's local loop supply. This immediately cured the problem with the Teletype chattering when plugged in but turned off.

Initially, there was something wrong when we switched it into local mode. Switching to local mode somehow opened the local loop. We cannot see how this could happen, and after a bit of fiddling, the problem seems to have fixed itself.

The old capacitor, to which we had added a bit of water, tested as better than it had been but not nearly as much capacity as the replacement, so we sealed the bung hole with black enamel paint and packed it awas as a spare part (perhaps more capacity will return, or perhaps we will eventually open the bottom of the can and stuff in modern replacements to create a cosmetically acceptable replacement part).

Bug 43: With the Teletype seeming to work, since we have completed our scan of all diodes in the PDP-8, we tried connecting everything and running a small program.The following program should have printed the entire character set over and over again including control characters and lower case (that the Teletype should fold into upper case):

06000 7200         CLA             / AC = 0
06001 6046 A,      TLS             / Loop top, send AC to TTY
06002 6041 B,      TSF             / skip if TTY done
06003 5202         JMP     B       / poll
06004 7001         IAC             / advance to next character
06005 5201         JMP     A       / iterate

This did not work, although resetting the computer did seem to send a null once in a while, a good sign that quite a bit is working. The program runs correctly on our emulated PDP-8/E, so we will need to do some work to diagnose the problem here.

Bug 74: In the time that was left, we went back to scanning diodes in the multifunction I/O device backplane at the bottom of the I/O rack. We finished all of the boards in rows A an B of this 4-row backplane, except for the double-high device selector boards. We found bad diodes on 2 R203 boards, one in A18 and one in B16; each had one partially shorted D664 diode. We replaced these.


Oct 6, 2025, More diodes, test Teletype.

Bug 75: The 2N527 transistors we ordered on Sep 18, 2025 arrived (somewhat late because the first eBay supplier we ordered from lost them and refunded our money, leading us to seek an alternate source). We replaced the three that had been mined from the W050 board in backplane slot MF23, leaving two spares in our spare parts supply.

Bug 74: We finished scannig diodes in rows A and B of the multifunction I/O device backplane. Rows C and D remain to be scanned.

Bug 43 and created Bug 77: We verified that the test program we left in memory on Sep 29 was still in memory, and then it while using logic probes and an oscilloscope to trace signals in the teletype interface in rows ME and MF of the PDP-8. This is described in drawing BS-D-8P-0-5 (page 10-45 of the Maintenance Manual). We made the following observations:

Here is part of the code from Sep 29 with the comments changed to reflect Sep 29 the low-level meaning of the instructions:

06000 7200         CLA             / AC = 0
06001 6046 A,      TLS             / Loop top, send IOP 2 and IOP 4 to TTY
06002 6041 B,      TSF             / skip (send IOP 1 to TTY)
06003 5202         JMP     B       / poll

Our measurements show that the TSF instruction never skips! Why?

On closer inspection, we found brief negative spikes each time the flipflop driving ME22 pin N was clocked, while pin U, the complement output remained constant. This flipflop should reset when clocked, and does not. We tried substituting our one spare R220; on that, pins N and U were both stuck at 0V, suggesting a defective spare.


Oct 9, 2025, Teletype output!

Bug 77: Continuing the work started on Oct 6, we pulled the R220 3-bit shift register board from backplane slot ME22 and rechecked the diodes. This board is very crowded compared to most of the boards in the machine, and the diodes are not uniformly oriented the same way on the board, making checking tricky. Working carefully, with a spare board for reference, we found 4 more bad diodes, all DEC's D664. We replaced them and tried the machine.

thumbnail photo

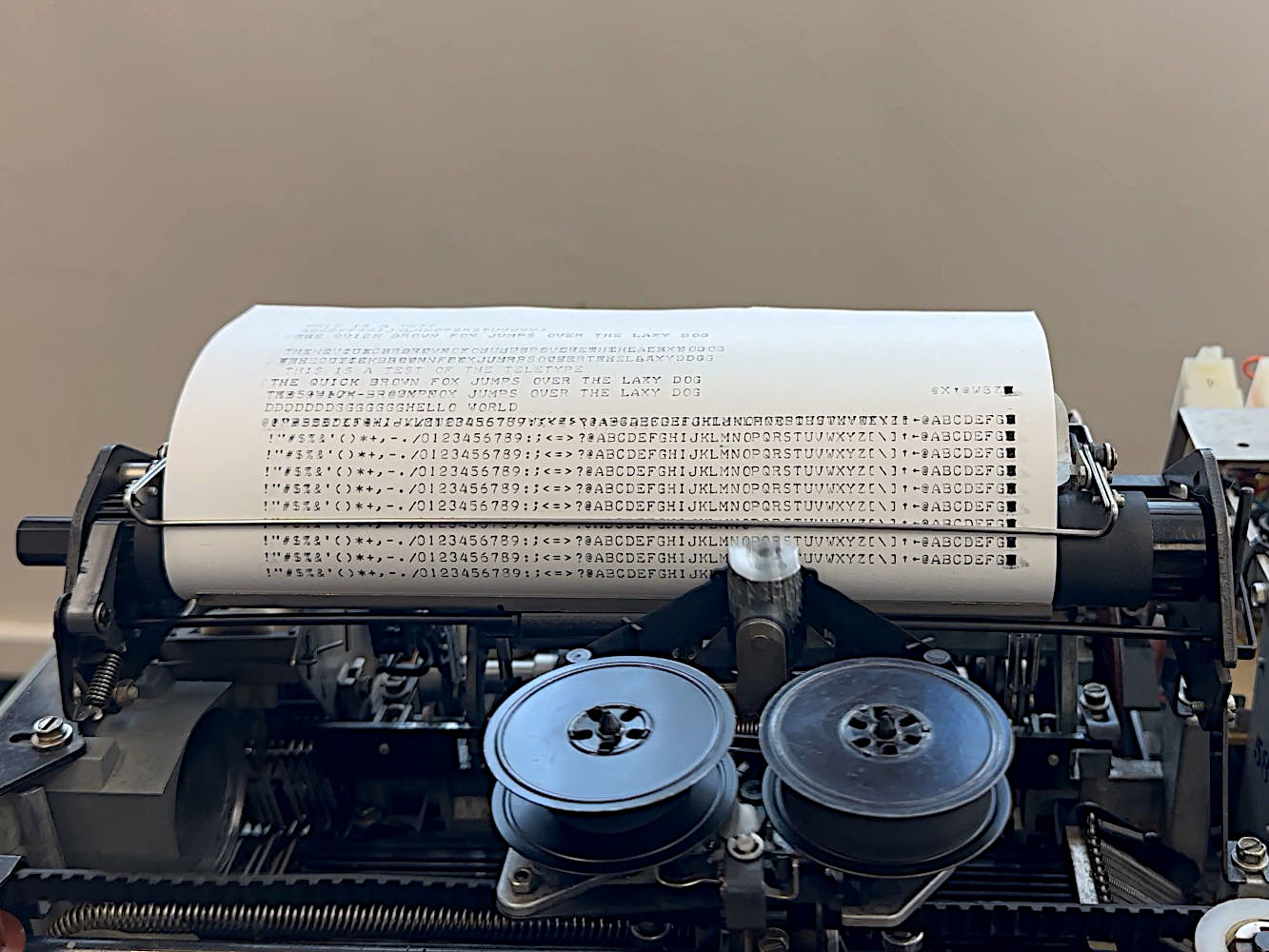

First Teletype output
We verified that the code from Sep 29 was still resident in memory. It was, and when we plugged in the Teletype and turned it on, it began printing the expected output, as seen in the photo to the left. The obvious next job is to debug Teletype keyboard input; since this also involves a chain of R220 3-bit shift-register boards, we will put some effort into reverse enginering these boards.

thumbnail photo

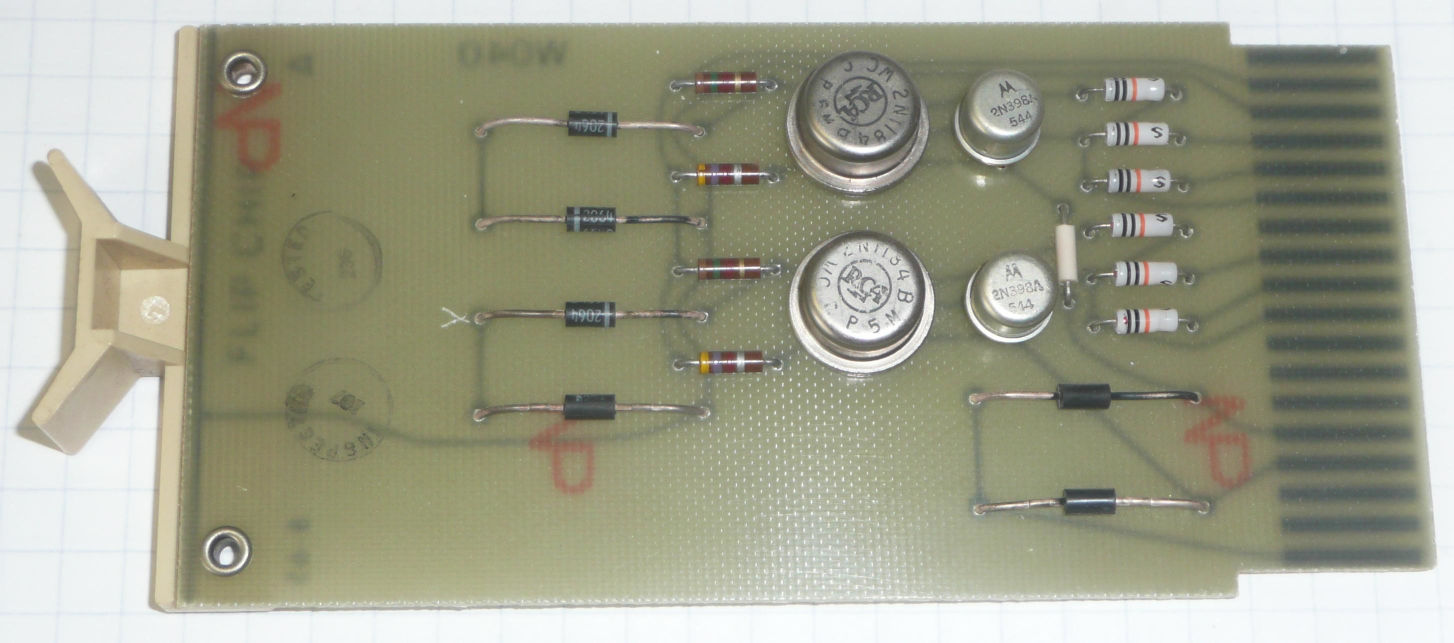

W040A top
thumbnail photo

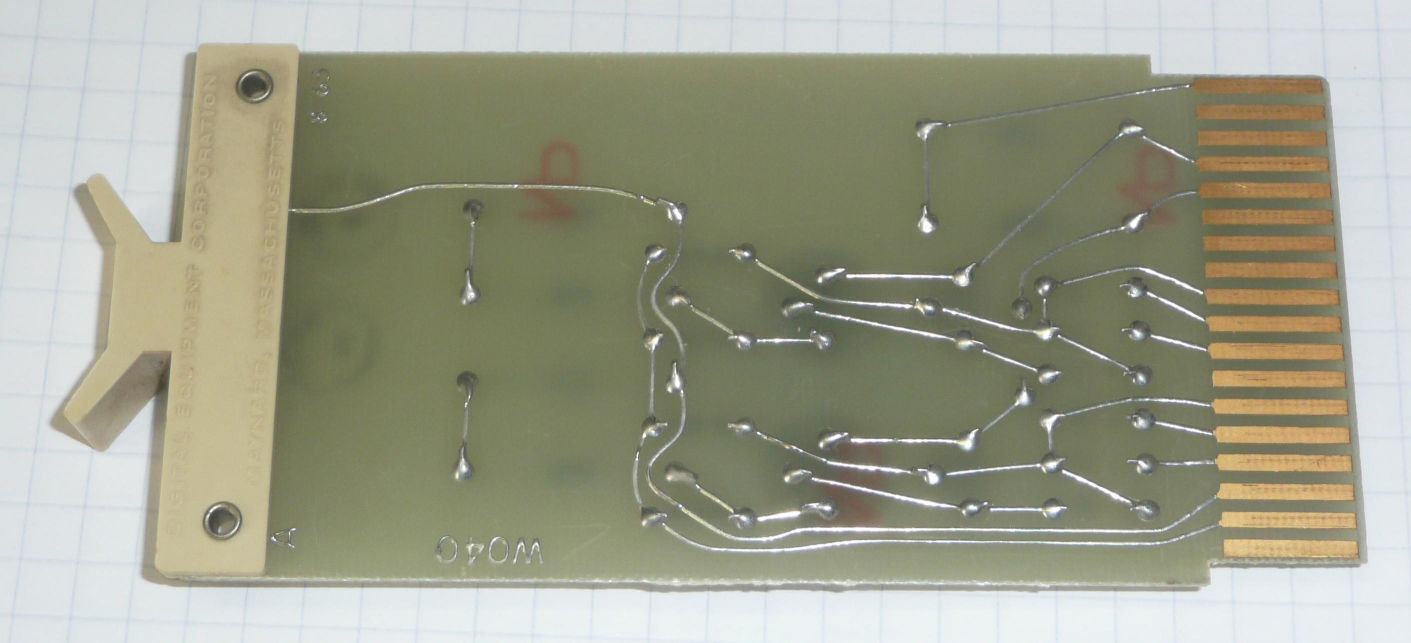

W040A bottom
Bug 74: We started scanning diodes in rows C of the multifunction I/O device backplane, starting with the 9 W040 solenoid driver/ W040 0.6mA solenoid driver boards in the Type 75E high-speed paper-tape punch controller. We found a bad diode on a W040. Unfortunately, we have not found a schematic for this board and the diode in question was obviously not one of the common D662 or D664 diodes, so we need to reverse engineer the board to find out the role of the diode and determine a safe replacement. To start this job, we took the photos of the board shown here


Oct 13, 2025, Debug Teletype input.

Bug 77: With Teletype output working, we wrote a test program to echo Teletype keyboard input to the Teletype printer:

6400 6031 A:      KSF             / loop top, skip if TTY keyboard ready
6401 5200         JMP     A       / polling loop waiting for input
6402 6036         KRB             / read keyboard into AC
6403 6046         TLS             / send AC to TTY
6404 6041 B:      TSF             / skip if TTY done
6405 5204         JMP     B       / polling loop waiting for output
6406 5200         JMP     A       / end loop, try for the next character

This program worked somewhat, it waited for keyboard input and echoed something to the printer, but rarely a printing character and never anything related to the key we pressed. The contents of the accumulator while the program awaits input should be the most recent character types, but was usually ither zero or all ones.

thumbnail scope display

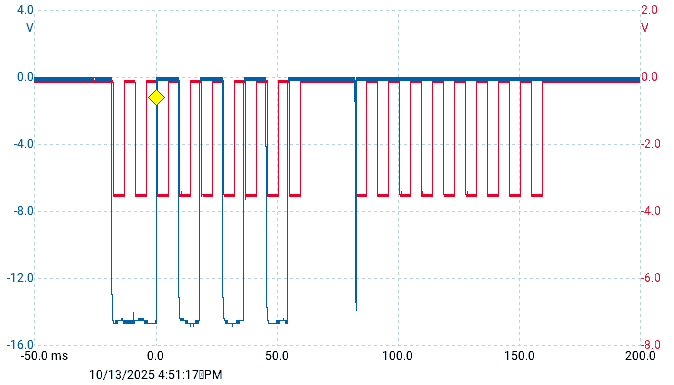

TTY input data and sample clock
thumbnail scope display

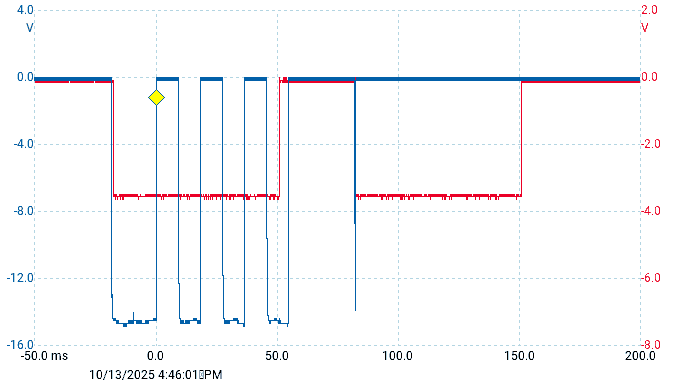

TTY input data and In Last Unit
The logic of the Teletype receiver is documented in the bottom half of drawing BS-D-8P-0-5 (page 10-45 of the Maintenance Manual). We connected channel A of our scope (shown in blue in the waveforms shown here) to pin MF22M on the PDP-8 backplane. This is the raw data from the Teletype. Initially, we expected the value to be clamped into the standard -3V to 0V range used by PDP-8 logic, but we immediately noticed that the signal swings from -15V to 0V. DEC opted not to use any filtering or signal conditioning electronics here, aside from a 3K resistor and a diode to prevent positive voltages. Although DEC's R-series logic can withstand input voltages in this range, we expected a Schmitt trigger and a low-pass filter here.

Looking at MF21R, the sample clock input to the pulse amplifier that drives the receiver shift register, we saw the expected 8 clock pulses triggered by the start bit, but we also saw a second train of clock pulses following the data. We see the same problem when we look at MF24E, a signal called In Last Unit that counts off the data bits.

The scope traces shown here all show the received data when the '*' key is pressed, with the binary code 0101010. Our teletype adds an 8th bit which is always 1, so this is sent as 10101010, and the asynch data format sends the least significant bit first, prefixed with a 0, the start bit, and suffixed with 11, two stop bits, giving 00101010111 as the 11 units of the code. This is easy to see in the traces shown here.

Bug 52: We immediately noticed the glitch at the end of the two stop bits. While this is much shorter than the bit time of the Teletype, it is definitely long enouth to trigger a second receive cycle. Since this glitch appears in the data from the Teletype, it tells us that the Teletype needs adjusting.


Oct 16, 2025, Adjust Teletype, fix input.

thumbnail photo
W040A layout
thumbnail photo
W040A schematic
Working from the photos we took on Oct 9, we reverse engineered the W040A board. We used DEC's drawing CS-B-W040-2 as a starting point, borrowing both layout and many part numbers from it as we traced the details of the W040A.

Bug 74: Having worked out the schematic for the W040A, we could see that the bad diode we found on Oct. 9 was in the current path to the solenoid driver, so it must be able to withstand 0.6A ad 70V. It appears to be used for its forward voltage drop, with a bias resistor guaranteeing that about 0.01A will flow through it when the driver is turned off. The 1N4002 diode can handle 1A at 100V, so this seems to be a sensible replacement.

Bug 52: On Oct 13 we noted that the Teletype was producing a glitch on the data line at the end of the stop bits. The Teletype keyboard produces parallel data; this data is converted to serial form by a distributor in the right rear of the typing unit. This has a carbon brush that sweeps around electrical contacts for each bit of data. We hypothesized that the glitch was caused by the distributor stopping precariously close to the end of the contact area for the stop bit, briefly breaking the connection.

Looking at the Teletype distributor adjustment instructions We found that, indeed, our distributor was a few degrees out of adjustment. Instead of pointing at the locating mark, the pointer on the distributor brush holder was pointing just beyound it. It was just barely possible to loosen the distributor mounting screw without disassembling the Teletype, and with repeated trials, we finally got the distributor adjusted. The problem was that tightening the mounting screw invariably moved the pointer, so we had to set the pointer somewhat back before tightening the screw to get it to end up correct.

It is interesting to ask why the glitches from the mis-adjusted distributor had no impact on the Teletype when operating in local mode. We suspect that they were simply too short to be noticed by the electromechanical serial-to-parallel data receiver in the Teletype.

Bug 77:
thumbnail scope display

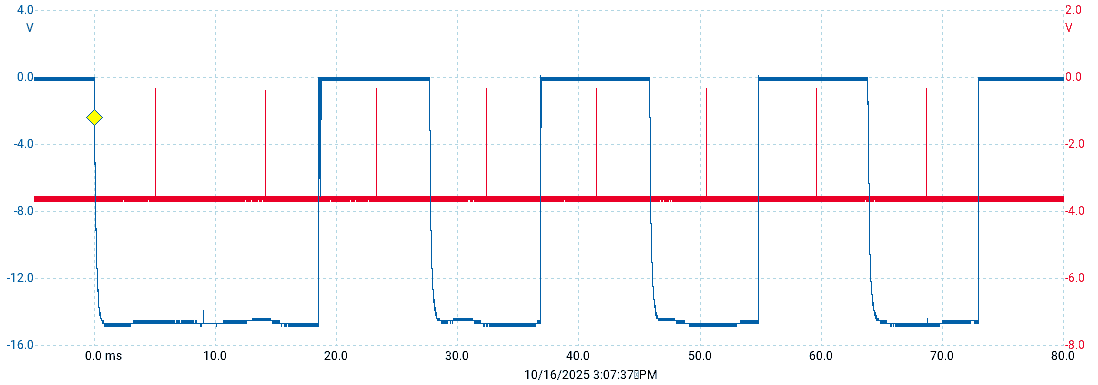

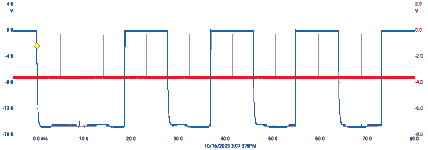

TTY input data and clock
thumbnail scope display

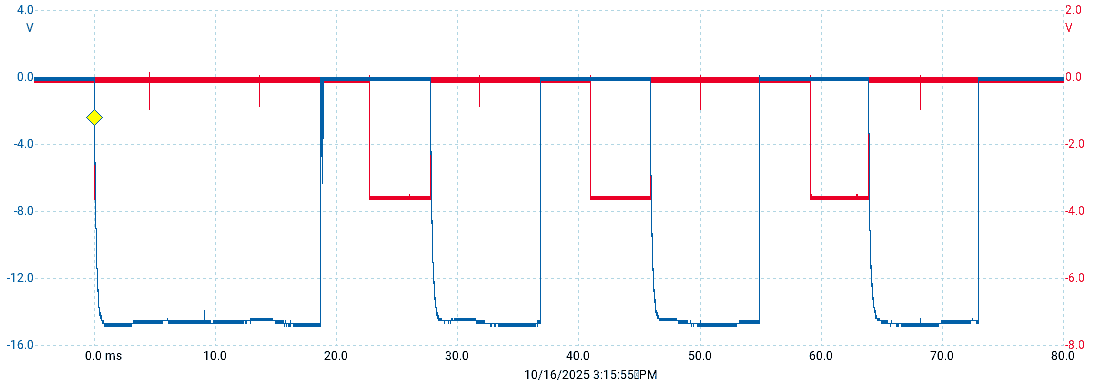

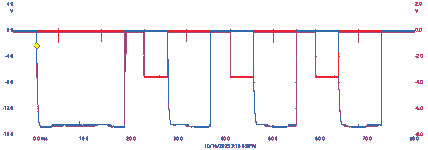

TTY input data and shift-register contents
With Teletype adjusted, we went back to the test program we had loaded in memory on Oct 13. It was easy to verify that the glitch had disappeared from the data, but it was difficult to see the 100ns output clock pulses and the data at the same time because the time scales were so different. We eventually found a sample-rate adjustment on our scope that allowed us to see these pulses. The top trace to the right shows the raw input data (pin MF22M on the PDP-8 backplane) in blue and the clock pulses output from the pulse amplifier (pin MF21T) in red. These look correct; again, as on Oct. 13, we used the asterisk character as our test data.

We then looked at the output of bit 0 of the teletype in shift register (pin MF22N). Drawing BS-D-8P-0-5 (page 10-45 of the Maintenance Manual) indicates that the shift-register is made of pulse-triggered flipflops. The DC clear input of all of these flipflops is pulsed used when input-acitve is asserted, but these flipflops should be not change at any other time. As the second trace to the right shows, the first bit of the shift register was being changed by every negative going edge of the input data. This is clearly wrong.

This led us to pull the R220 3-bit shift register board from backplane slot MF22. Even though we had just tested all the diodes, careful testing revealed that 3 more diodes on this board were bad. We suspect that the nearly random placement of diodes on this very crowded board led us to miss some of the bad diodes.

After these diodes were replaced, the Teltype worked with our test program. Every character we typed on the keyboard was correctly echoed on the printer!
