## 1. Find a Better Visualization

The original:

Some issues:

• The white bars are supposed to represent the numbers, but are not using a zero base line – the bar for Obama’s 79 % whould be nearly twice as long as the bar for Trump’s 40 %.
• The blue and red bars are distracting at best, misleading at worst. They could represent the complementary proportion, but the lengths are wrong relative to the white bars and to each other.
• The placement of the GMA logo adds to the confusion.

A simple bar chart with a zero base line:

library(dplyr)
##
## Attaching package: 'dplyr'
## The following objects are masked from 'package:stats':
##
##     filter, lag
## The following objects are masked from 'package:base':
##
##     intersect, setdiff, setequal, union
library(ggplot2)
d <- data.frame(pres = c("Obama", "Carter", "Clinton",
"G.W. Bush", "Reagan", "G.H.W Bush", "Trump"),
appr = c(79, 78, 68, 65, 58, 56, 40),
party = c("D", "D", "D", "R", "R", "R", "R"),
year = c(2009, 1977, 1993, 2001, 1981, 1989, 2017))
d <- mutate(d, pres = reorder(pres, appr))

p <- ggplot(d, aes(x = pres, y = appr, fill = party)) +
geom_col() + coord_flip()
p

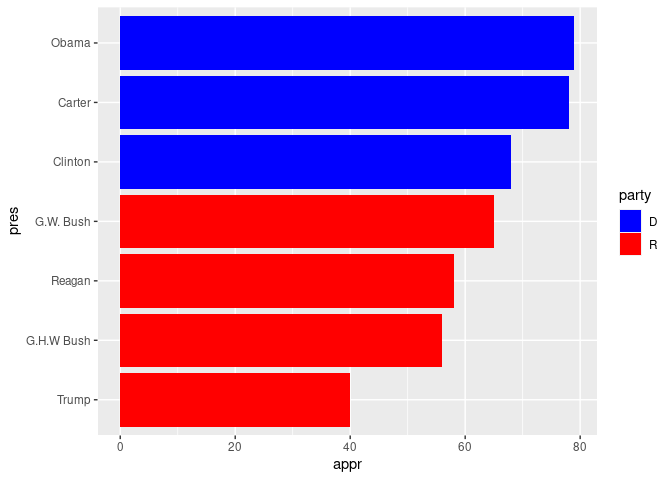

• In recent years it has become common to represent Democrats as blue, Republicans as red.

• The default colors are close to red and blue, but their use is opposite to current convention.

This can be changed using scale_fill_manual:

p + scale_fill_manual(values = c(R = "red", D = "blue"))

• Pure colors are very intense when used in larger areas.

• Pure warm colors, like red, are more intense than pure cool colors, like blue.

We can reduce the saturation and the value in the HSV color representation to obtain less intense colors; this is commonly used in red state/blue state maps:

myred <- hsv(0, 0.6, 0.8)
myblue <- hsv(2 / 3, 0.6, 0.8)
p + scale_fill_manual(values = c(R = myred, D = myblue))

Some enhancements:

p + scale_fill_manual(values = c(R = myred, D = myblue)) + theme_void() +
geom_text(aes(y = 3, label = pres),
size = 8, hjust = "left", color = "white") +
geom_text(aes(y = appr - 3, label = appr),
size = 8, hjust = "right", color = "white")

Some notes:

• A dot chart is a reasonable alternative in this case.

• Horizontal bar charts are the norm in these settings since they allow horizontal labels of reasonable size.

• Party is a nominal or categorical attribute, not a numeric attribute.

## 2. EPA Fuel Economy Data

library(lubridate)
if (! file.exists("vehicles.csv.zip") ||
file.mtime("vehicles.csv.zip") + months(6) < now())
"vehicles.csv.zip")
newmpg <- read_csv("vehicles.csv.zip", guess_max = 100000)

From the documentation for the data the appropriate variables seem to be:

• highway08 corresponds to hway in mpg;
• cylinders corresponds to cyl in mpg;
• displ corresponds to displ in mpg;
• fuelType1 represents the primary fuel type, fl in mpg.

The primary fuel type counts are

library(dplyr)
tbl <- count(newmpg, fuelType1)
kbl <- knitr::kable(tbl, format = "html")
kableExtra::kable_styling(kbl, full_width = FALSE)
fuelType1 n
Diesel 1231
Electricity 353
Natural Gas 60
Regular Gasoline 29384

A bar chart of these numbers:

thm <- theme_minimal() + theme(text = element_text(size = 16))
ggplot(tbl, aes(x = n, y = reorder(fuelType1, n))) +
geom_col() +
scale_x_continuous(expand = expansion(mult = c(0, .1))) +
thm +
ylab(NULL)

Regular gas is the dominant fuel type over all years, with premium second. All other fuel types, including electricity, make up a small fraction.

## 3. Fuel Type Over the Years

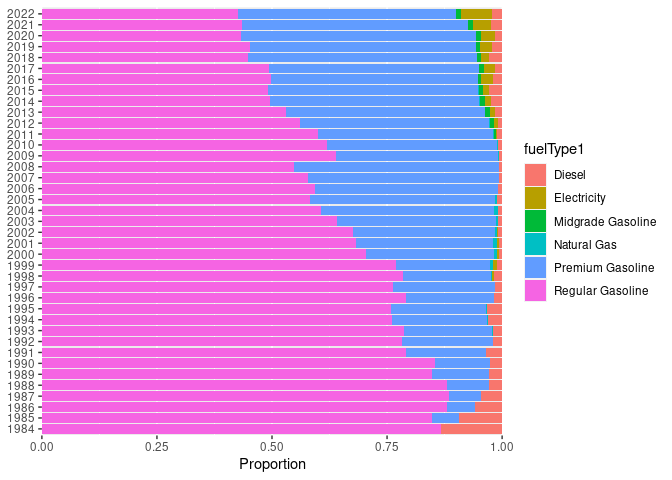

A filled bar chart shows changes in the primary fuel type used over the years:

newmpg2 <- filter(newmpg, year <= 2021) %>%
mutate(year = factor(year))
ggplot(newmpg2, aes(y = year, fill = fuelType1)) +
geom_bar(position = "fill") +
scale_x_continuous(expand = c(0, 0)) +
labs(x = "Proportion", y = NULL)

Regular gas was the predominant fuel type in the mid 1980s, but premium’s share has gradually increased to the point where almost as many models use premium as regular. Diesel’s popularity declined early and had a small resurgence recently. The market share for electricity is still quite small but is growing.

## 4. Highway Fuel Economy Over the Years

newmpg3 <- filter(newmpg, year <= 2021, year >= 2000) %>%
mutate(year = factor(year))
alpha <- 0.2
size <- 0.3

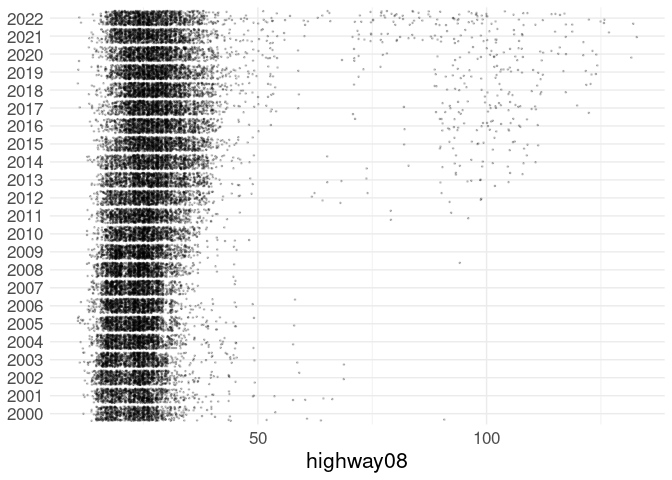

A strip chart is a useful way to look at the full data for a numeric variable at several different levels of a discrete variable, but some tuning is needed for larger data sets. For examining 22 years of highway gas mileage data from the EPA data set using alpha = 0.2 and size = 0.3 along with jittering seems to work reasonably well:

ggplot(newmpg3, aes(x = highway08, y = year)) +
geom_point(position = "jitter", size = size, alpha = alpha) +
ylab(NULL) +
thm

Over time the highway gas mileage distributions are moving upward a little bit, with the upper tails becoming gradually longer and an increasing number of very high efficiency models (mostly electric).
