An Animation of a Votomatic Voting Machine
Back to chad
in the Punched
Back to Jones on
Douglas W. Jones

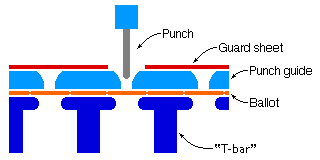

In looking at this figure, note the following:
- This figure is not to scale!
- Various T-bar geometry and materials have been used. Today's machines
use T-strips made of an elastomer; the strips almost meet under the
center of the (potential) hole, but yield as the chad is pushed through.
- About a decade ago, John Ahmann of Election Supplies Inc patented the
a stylus with a needle in the tip. This stabs the piece of chad and
almost guarantees a clean punch unless there is an obstruction. The
modern microtip stylus has a 0.001 inch needle, so small you can barely
feel it, yet quite sufficient to keep the chad from sliding to the side
even if the stylus catches it way off center.
- A new guard sheet is prepared for each election. Holes punched in the
guard sheet allow ballots to be punched only in certain positions.
- It is highly unlikely that the piece of chad will tear loose at both
ends at the same time. Thus, it is likely to be in a trapdoor
- If the T-bars were missing or badly worn, the piece of chad would not
grip the end of the punch, and as a result, even with a needle point
stylus, it would not tear loose.
- The space behind the T-bars is big enough to hold an awful lot of chad.
